AMC 1 Core 4mm² Black Thin Wall Cable (100m)
AMC 1 Core 4mm² Black Thin Wall Cable (100m)
Regular price
£127.85 GBP
Regular price
Sale price
£127.85 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

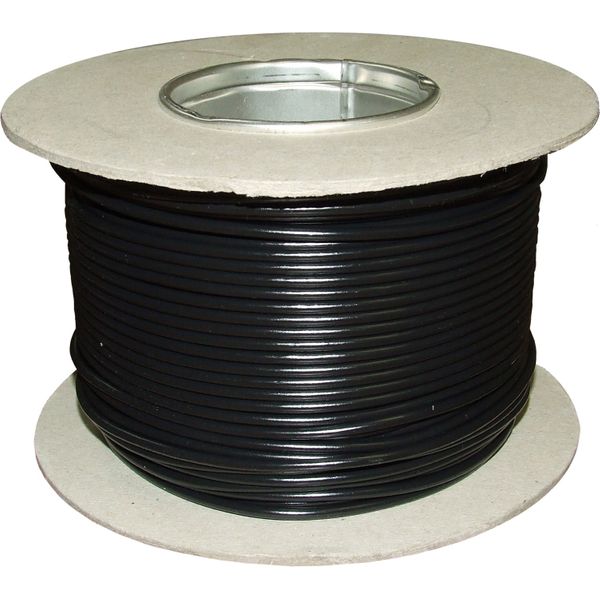

AMC 1 Core 4mm² Black Thin Wall Cable (100m)
Part No: 734159-A
Auto Marine thin wall electrical cable, with 4mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 100 metre cable reel with black PVC wall, other wall colours are also available.
| Shape Description | Round |
| Colour | Black |
| Resistance Per Metre at 20degC | 0.00471 ohms |
| Diameter Description | Max Outside Diameter: 3.5mm |
| Cable Conductor Cross Section Description | 4.0mm² |
| Conductor Specifications | 56/0.30 mm |
| Cable Insulation | Hard Grade PVC |
| Unit of Sale | 100 Metres |
| Country of Origin | United Kingdom |
| Cable Cores | 1 Core |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Cable Conductor | Plain Copper |
| Style | Thin Wall Cable |
| Brand | AMC |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Type | PVC Single Core Cables |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Maximum Load Description | 12V = 468 Watts, 24V = 936 Watts |
| Amps Description | Nominal Current Rating: 39A |
