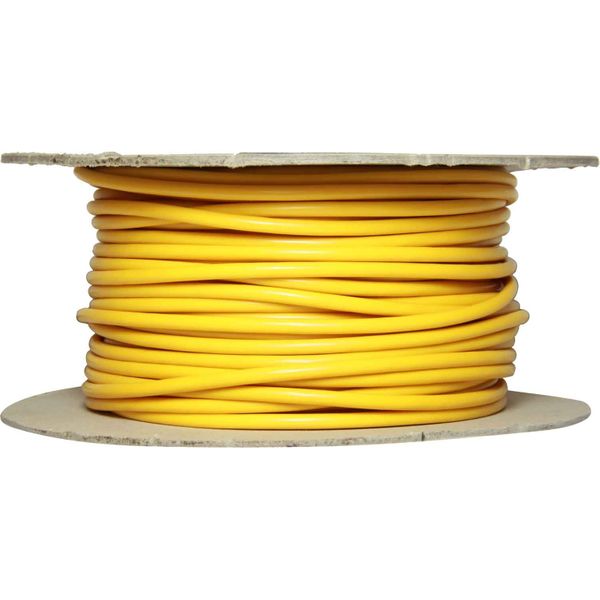

AMC 1 Core 3mm² Yellow Thin Wall Cable (100m)
AMC 1 Core 3mm² Yellow Thin Wall Cable (100m)
Couldn't load pickup availability
AMC 1 Core 3mm² Yellow Thin Wall Cable (100m)
Part No: 734149-M
Auto Marine thin wall electrical cable, with 3mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade yellow PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 100 metre cable reel with yellow PVC wall, other wall colours are also available.
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Maximum Load Description | 12V = 396 Watts, 24V = 792 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | AMC |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Colour | Yellow |
| Country of Origin | United Kingdom |
| Unit of Sale | 100 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 44/0.30 mm |
| Cable Conductor Cross Section Description | 3.0mm² |
| Diameter Description | Max Outside Diameter: 3.2mm |
| Resistance Per Metre at 20degC | 0.00615 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 33A |
