AMC

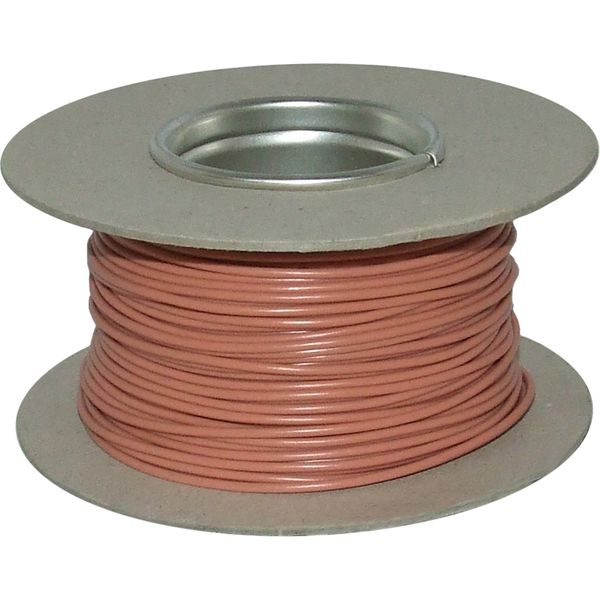

AMC 1 Core 1mm² Pink Thin Wall Cable (50m)
AMC 1 Core 1mm² Pink Thin Wall Cable (50m)
Regular price
£26.78 GBP
Regular price
£22.32 GBP
Sale price
£26.78 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
AMC 1 Core 1mm² Pink Thin Wall Cable (50m)
Part No: 8-00725-PK
Auto Marine thin wall electrical cable, with 1mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade pink PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 50 metre cable reel with pink PVC wall, other wall colours are also available.
Approvals
Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
Temperature Range
-40°C to +105°C (with excursions to 120°C max)
Voltage Description
Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
Brand
AMC
Style
Thin Wall Cable
Cable Conductor
Plain Copper
Cable Cores
1 Core
Colour
Pink
Country of Origin
United Kingdom
Unit of Sale
50 Metres
Cable Insulation
Hard Grade PVC
Conductor Specifications
32/0.20 mm
Cable Conductor Cross Section Description
1.0mm²
Diameter Description
Max Outside Diameter: 1.95mm
Replaces
712115-H & 734115-H
Resistance Per Metre at 20degC
0.0185 ohms
Shape Description
Round
Amps Description
Nominal Current Rating: 16.5A
Share
View full details
AMC 1 Core 1mm² Pink Thin Wall Cable (50m)
Part No: 8-00725-PK
Auto Marine thin wall electrical cable, with 1mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade pink PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 50 metre cable reel with pink PVC wall, other wall colours are also available.
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | AMC |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Colour | Pink |
| Country of Origin | United Kingdom |
| Unit of Sale | 50 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 32/0.20 mm |
| Cable Conductor Cross Section Description | 1.0mm² |
| Diameter Description | Max Outside Diameter: 1.95mm |
| Replaces | 712115-H & 734115-H |
| Resistance Per Metre at 20degC | 0.0185 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 16.5A |
