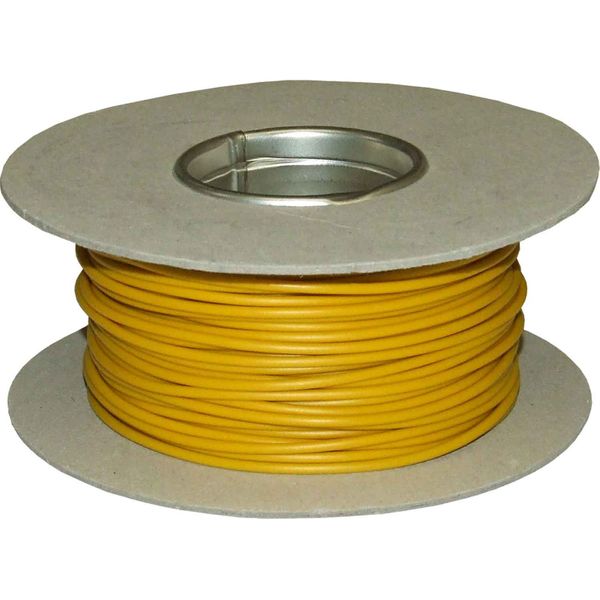

AMC 1 Core 1.5mm² Yellow Thin Wall Cable (100m)
AMC 1 Core 1.5mm² Yellow Thin Wall Cable (100m)
Regular price
£74.60 GBP
Regular price
£62.17 GBP
Sale price
£74.60 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
AMC 1 Core 1.5mm² Yellow Thin Wall Cable (100m)
Part No: 734129-M
Auto Marine thin wall electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade yellow PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 100 metre cable reel with yellow PVC wall, other wall colours are also available.
Approvals
Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
Maximum Load Description
12V = 252 Watts, 24V = 504 Watts
Temperature Range
-40°C to +105°C (with excursions to 120°C max)
Voltage Description
Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
Brand
AMC
Style
Thin Wall Cable
Cable Conductor
Plain Copper
Cable Cores
1 Core
Colour
Yellow
Country of Origin
United Kingdom
Unit of Sale
100 Metres
Cable Insulation
Hard Grade PVC
Conductor Specifications
21/0.30 mm
Cable Conductor Cross Section Description
1.5mm²
Diameter Description
Max Outside Diameter: 2.3mm
Resistance Per Metre at 20degC
0.0127 ohms
Shape Description
Round
Amps Description
Nominal Current Rating: 21A
Share
View full details
AMC 1 Core 1.5mm² Yellow Thin Wall Cable (100m)
Part No: 734129-M
Auto Marine thin wall electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade yellow PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 100 metre cable reel with yellow PVC wall, other wall colours are also available.
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Maximum Load Description | 12V = 252 Watts, 24V = 504 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | AMC |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Colour | Yellow |
| Country of Origin | United Kingdom |
| Unit of Sale | 100 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 21/0.30 mm |
| Cable Conductor Cross Section Description | 1.5mm² |
| Diameter Description | Max Outside Diameter: 2.3mm |
| Resistance Per Metre at 20degC | 0.0127 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 21A |
