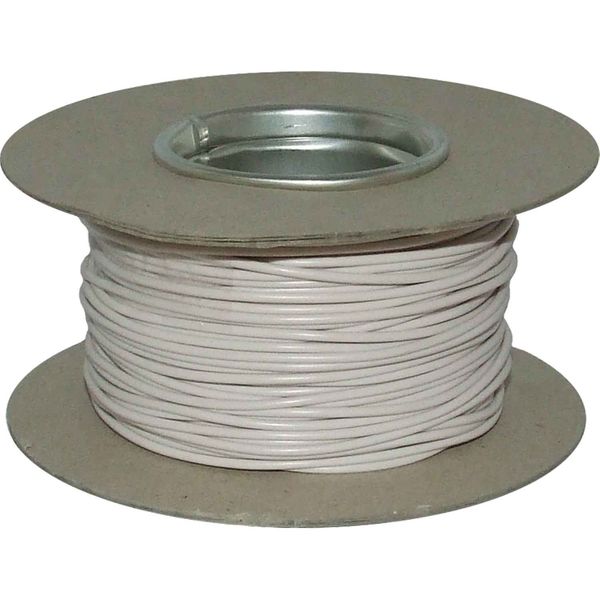

AMC 1 Core 1.5mm² White Thin Wall Cable (100m)
AMC 1 Core 1.5mm² White Thin Wall Cable (100m)
Couldn't load pickup availability
AMC 1 Core 1.5mm² White Thin Wall Cable (100m)
Part No: 734129-L
Auto Marine thin wall electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade white PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 100 metre cable reel with white PVC wall, other wall colours are also available.
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Maximum Load Description | 12V = 252 Watts, 24V = 504 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | AMC |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Colour | White |
| Country of Origin | United Kingdom |
| Unit of Sale | 100 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 21/0.30 mm |
| Cable Conductor Cross Section Description | 1.5mm² |
| Diameter Description | Max Outside Diameter: 2.3mm |
| Resistance Per Metre at 20degC | 0.0127 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 21A |
