4Dek
4Dek Stainless Steel Hinge (39mm x 74mm / Protruding Pin)
4Dek Stainless Steel Hinge (39mm x 74mm / Protruding Pin)
Regular price
£16.90 GBP
Regular price
£14.08 GBP
Sale price
£16.90 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269

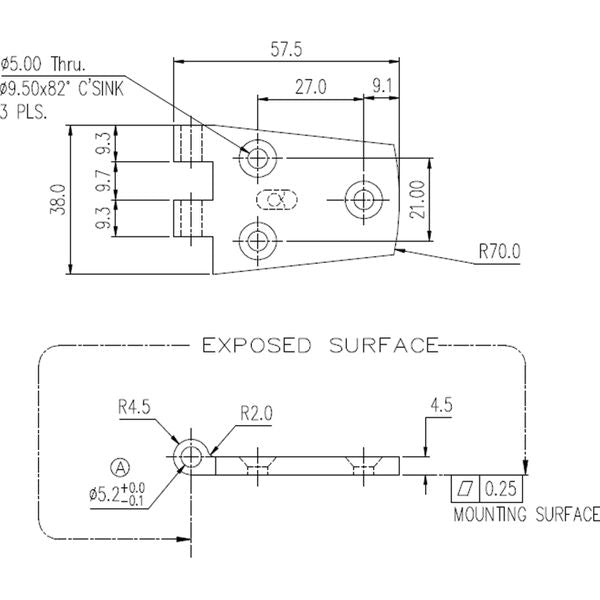

4Dek Stainless Steel Hinge (39mm x 74mm / Protruding Pin)
Part No: 831421
4Dek mirror polished AISI316 stainless steel door hinge. This hinge has a protruding pin where the pin sits above the two connecting parts. This hinge has one short side with 2 screw holes and one longer side with 3 screw holes.
Height Description
Open: 74mm (3")
Material
Polished AISI 316 Stainless Steel
Type
Protruding Pin Hinges
Width
Pin: 39mm (1-1/2")
Brand
4Dek
Primary Construction
Stainless Steel 316
Hinge
Protruding Pin
Screw Holes
5
Thickness
Hinge: 5mm (0.2")
Share
View full details
4Dek Stainless Steel Hinge (39mm x 74mm / Protruding Pin)
Part No: 831421
4Dek mirror polished AISI316 stainless steel door hinge. This hinge has a protruding pin where the pin sits above the two connecting parts. This hinge has one short side with 2 screw holes and one longer side with 3 screw holes.
| Height Description | Open: 74mm (3") |
| Material | Polished AISI 316 Stainless Steel |
| Type | Protruding Pin Hinges |
| Width | Pin: 39mm (1-1/2") |
| Brand | 4Dek |
| Primary Construction | Stainless Steel 316 |
| Hinge | Protruding Pin |
| Screw Holes | 5 |
| Thickness | Hinge: 5mm (0.2") |
