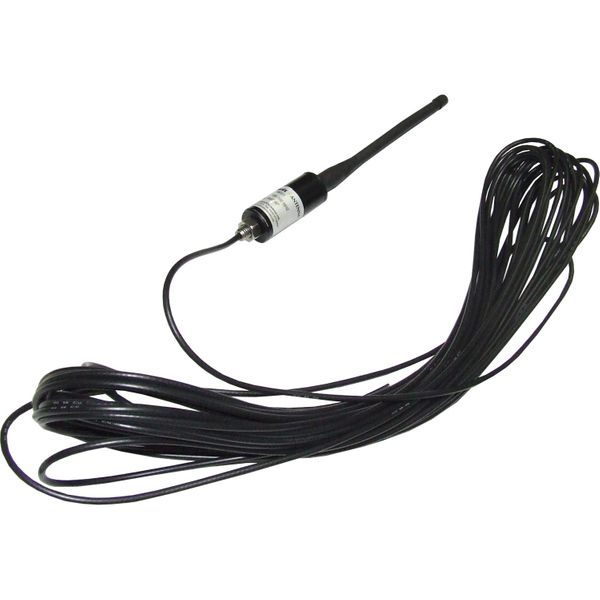

Shakespeare MD23 Short Helical Antenna (20m Cable / VHF)
Part No: 716520
The Shakespeare V-Tronix MD 23 is a Short Helical VHF Antenna, designed to withstand the most rugged punishment.
It is manufactured to the highest standards and quality and all the vulnerable electrical parts are sealed in epoxy resin to resist water ingress.
The MD 23 is a low profile, low windage, unobtrusive antenna, which does not require a ground plane.
This Shakespeare antenna is particularly designed for sailing boats, RIBs and powerboats.
Shakespeare boat antennas benefit from low angle techniques that increase signal range and actually reduces power wastage. They insist on high quality and reliability, no matter how rough the seas are.
| Gain | 3 dB |
| Length | Antenna: 0.31m (1ft), Bracket: 180mm |
| Supplied With | Aluminium Mounting Bracket |
| Type | VHF Aerials |
| Brand | Shakespeare |
| Frequency | 156-162MHz |
| Style | Helical Antenna |
| Suitable For | Powerboats|RIBs|Sailboats |
| Warranty | 2 Years |
| Antenna Cable | 20m (65-5/8ft) RG-58 Cable |
| Antenna Max Input Power | 50W |
| Antenna VSWR | 96MHz within 2:1 VSWR (800/900 MHz band) 140MHz within 2:1 VSWR (1900 MHz band) |
| Connector Plug Supplied | PL-259 |
| DC Ground | 10K ohm Reading |
| Ferrule | M12 Thread |
| Frequency Description | 156-162MHz |
| Model | MD23 |
