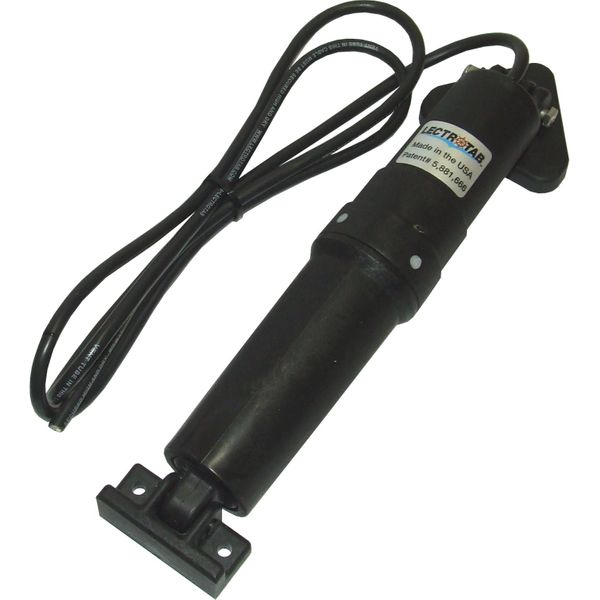

Lectrotab 8 Second Trim Tab Actuator (12V / 292mm / Sold Singularly)
Lectrotab 8 Second Trim Tab Actuator (12V / 292mm / Sold Singularly)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Lectrotab 8 Second Trim Tab Actuator (12V / 292mm / Sold Singularly)
Part No: 616812
Lectrotab Model A trim tab actuator for use with Lectrotab electromechanical trim tab systems. Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The actuator is corrosion free, ensures very accurate trim positioning, provides maximum lift force and is totally self-contained for easy installation.
This Model A standard actuator features an 8 second deployment time which allows for a smooth and controlled response to tab adjustments. The actuator is suitable for transom mounting or under hull pocket mounting. Upper and lower mounting brackets are supplied as well as 6 feet of cable.
Remember, all Lectrotab trim tab actuators come with a 7 year warranty against material and workmanship defects!
Fuse
20A
Height Description
Vertical Installation Height: 302mm (11-7/8")
Length
Cable Length: 1.8M (6ft)
Voltage Description
12V DC
Brand
Lectrotab
Country of Origin
United States
Stroke Time
8 Seconds
Unit of Sale
Single Unit
Dimensions
Bolt to Pin Distance: 292mm (11-1/2")
Model
A - Standard
Replaces
6 Second Actuator 616512, 4 Second Actuator 616412.
Share
View full details
Lectrotab 8 Second Trim Tab Actuator (12V / 292mm / Sold Singularly)
Part No: 616812
Lectrotab Model A trim tab actuator for use with Lectrotab electromechanical trim tab systems. Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The actuator is corrosion free, ensures very accurate trim positioning, provides maximum lift force and is totally self-contained for easy installation.
This Model A standard actuator features an 8 second deployment time which allows for a smooth and controlled response to tab adjustments. The actuator is suitable for transom mounting or under hull pocket mounting. Upper and lower mounting brackets are supplied as well as 6 feet of cable.
Remember, all Lectrotab trim tab actuators come with a 7 year warranty against material and workmanship defects!
| Fuse | 20A |
| Height Description | Vertical Installation Height: 302mm (11-7/8") |
| Length | Cable Length: 1.8M (6ft) |
| Voltage Description | 12V DC |
| Brand | Lectrotab |
| Country of Origin | United States |
| Stroke Time | 8 Seconds |
| Unit of Sale | Single Unit |
| Dimensions | Bolt to Pin Distance: 292mm (11-1/2") |
| Model | A - Standard |
| Replaces | 6 Second Actuator 616512, 4 Second Actuator 616412. |
