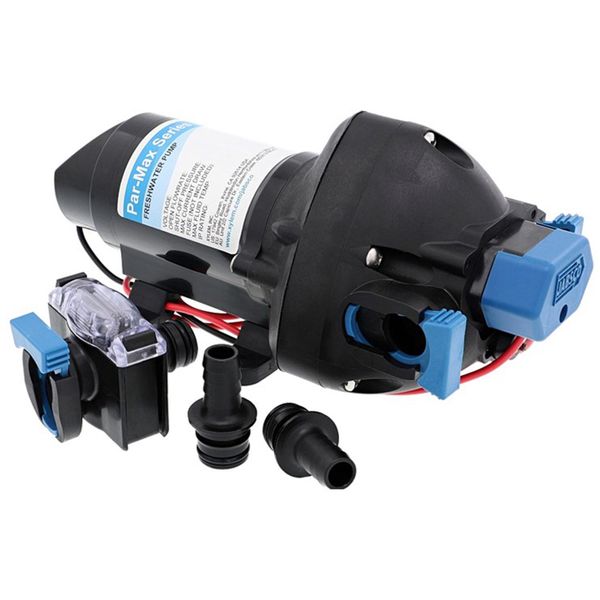

Jabsco 31295-3512 Par Max 2 Marine Pressure Pump (12V, 7 LPM, 35 PSI)



Part No: JAB-31295-3512

The Jabsco Par Max 2 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.

Jabsco Par Max 2 water pressure pumps are internally grounded and have a three chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets.

This pump replaces the Jabsco 31295-0092 Par-Max 1.9 pressure pump.

The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation, as well as a 40 mesh inline strainer.

Jabsco Par Max Pressure Pump Features & Benefits:

- Enclosed motor

- Integrated Pressure Switch

- Vibration & Noise reducing mounting

- Self‐priming

- Runs Dry without Damage

Jabsco Pump 31295-3512-3A Spare Parts:

Part ID | Spare Part | Part Number

1 | Port Clips | 30647-1000

2 | Switch Kit | 18916-1035

3 | Check Valve Assembly| 20407034

4 | Diaphragm/Drive Assembly | Not offered

5 | Baseplate/Mounting Feet | 20717001A

Approvals	ISO 8846 MARINE (ignition protection), CSA Listed, C.E Certified
Cut In Pressure	15 PSI / 1 Bar
Cut Out Pressure Description	35 PSI / 2.4 Bar
Flow Rate Description	7.6 LPM (2 US GPM)
Fuse	10A (not included)
Height Description	107mm (4.2")
Length	231mm (9.1")
Series	Par Max 2
Size	Leads: 305mm (12"), 1.5mm2 (16 AWG)
Supplied With	Inline Strainer (40 Mesh) & Quick Connect Fittings
Temperature Range	Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F)
Type	Fresh Water Pumps
Voltage Description	12V DC
Width	107mm (4.2")
Brand	Jabsco
Warranty	3 Years
Hose Size	13mm / 1/2"
Model	31295-3512-3A
Pressure Rating	Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum
Replaces	Jabsco 31295‐0092 Par Max 1.9 Pumps
Self Primes up to	3 Metres (9.8 Feet) Vertical Lift
Inlet Outlet	Fittings for 13mm (1/2") ID hose
Amps Description	6A (at 35 PSI / 1.7 bar)
